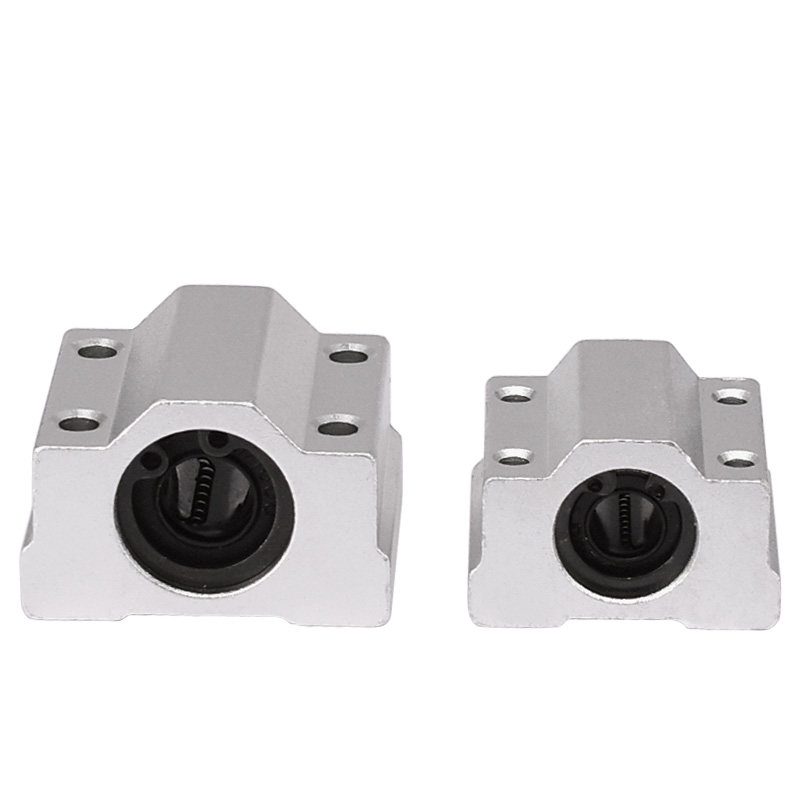

3D Printer Linear Ball SC6UU SCS8UU Bearing Block Aluminum Alloy
Aluminum Alloy SC6UU SCS8UU Linear Ball 3D Printer Bearing Block
Descriptions of Bearing Block
Material: aluminum alloy
Type: SC6UU,SC8UU,SC10UU,SC12UU,SC13UU,SC16UU,SC20UU
Parameters of Bearing Block
| Type | Dimensions(mm) | Slide bush | Weight(g) | | T | H | E | W | L | F | G | B | C | K | S1 | S2 | L1 | Type | Rating load | | Dynamic | Statoe Co N | | SCS6UU | 6 | 9 | 15 | 30 | 25 | 18 | 15 | 20 | 15 | 5 | M4 | 3.4 | 8 | LM6UU | 206 | 265 | 34 | | SCS8UU | 6 | 11 | 17 | 34 | 30 | 22 | 18 | 24 | 18 | 5 | M4 | 3.4 | 8 | LM8UU | 274 | 392 | 52 | | SCS10UU | 8 | 13 | 20 | 40 | 35 | 26 | 21 | 28 | 21 | 6 | M5 | 4.3 | 12 | LM10UU | 372 | 549 | 92 | | SCS12UU | 8 | 15 | 21 | 42 | 36 | 28 | 24 | 30.5 | 26 | 5.75 | M5 | 4.3 | 12 | LM12UU | 510 | 784 | 102 | | SCS16UU | 9 | 19 | 25 | 50 | 44 | 38.5 | 32.5 | 36 | 34 | 7 | M5 | 4.3 | 12 | LM16UU | 774 | 1180 | 200 | | SCS20UU | 11 | 21 | 27 | 54 | 50 | 41 | 35 | 40 | 40 | 7 | M6 | 5.2 | 12 | LM20UU | 882 | 1370 | 255 | |
